16mm Ø Piezo Anti-Vandal Switches
PBA Series
R1 – Flat Operator, 4.5mm Height

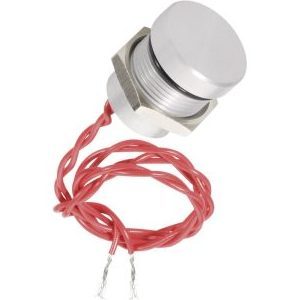

T5 – Flat Operator, 1mm Height – Non-Illuminated
R5 – Flat Operator with Finger Locator, 4.5mm Height – Non-Illuminated
Function: Pulse N/O, N/C or ON/OFF*
Materials: Aluminium or 316L Stainless Steel
Connectors: Flying leads, Cable or Straight PC (T5 model, non-illuminated, functions A & B only)
Electrical Function:
Function A – standard 200 mA 24 VAC/DC – option 1 A 24 VAC/DC
Function B – standard 100 mA 24 VAC/DC
* (requires external power supply – cannot be combined with T5 operator – illumination type W only)
T5 – Flat Operator, 1mm Height – Non-Illuminated
R5 – Flat Operator with Finger Locator, 4.5mm Height – Non-Illuminated
Function: Pulse N/O, N/C or ON/OFF*
Materials: Aluminium or 316L Stainless Steel
Connectors: Flying leads, Cable or Straight PC (T5 model, non-illuminated, functions A & B only)
Electrical Function:
Function A – standard 200 mA 24 VAC/DC – option 1 A 24 VAC/DC
Function B – standard 100 mA 24 VAC/DC
* (requires external power supply – cannot be combined with T5 operator – illumination type W only)
